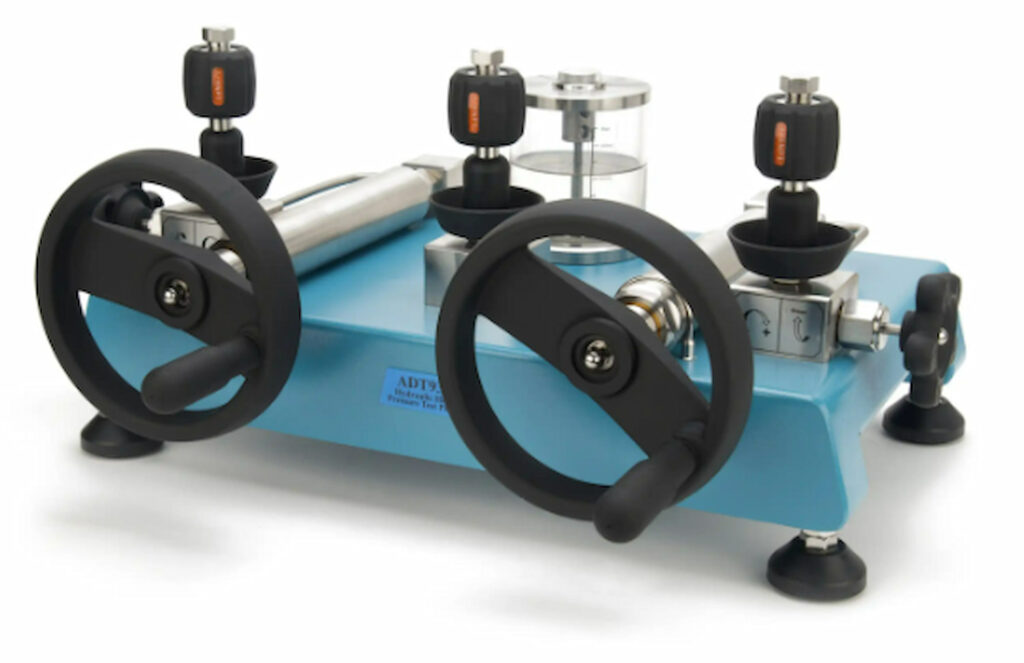

Additel ADT936 Hydraulic Pressure Test Pump (Oil)
The ADT936 Hydraulic High Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 85% vacuum to 15,000 psi (1,000bar). The 936 is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the laboratory.
The Additel 936 Hydraulic High Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 85% vacuum to 15,000 psi (1,000 bar). With the patented screw press technology, high pressures can be easily generated, as well as increased and decreased smoothly. A specially designed shut-off valve makes the pressure as stable as possible during calibration. With no check valve (non-returning valve), the ADT936 avoids the troublesome leakage issues that is usually experienced with hand pumps and allows for minimal maintenance. Three hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches. The 936 is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the laboratory.
Features:
- High Pressure: Generates pressure up to 15,000 psi (1000 bar)
- Durable and Minimal Maintenance: Patented screw press technology, without non-returning valve inside that is usually used on troublesome hand pumps.
- Easy-to-use: High pressures can be generated easily, as well as increased and decreased smoothly.
- Extremely Low Leakage: Patented screw press technology replaces troublesome check valves (non-returning valve) in most hand pumps which practically eliminates leakage.
- Hand-tight Quick Connectors: Allows easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches.
- Model: ADT936
- Generates 85% vacuum to 15,000 psi (1,000 bar) Pressure
- Minimal maintenance
- Increase and decrease pressure smoothly
- Three pressure ports
- Hand-tight quick connectors
Applications:
The Additel 936 is designed to generate pressure from 85% vacuum to 15,000 psi (1000 bar) for the application requiring accurate pressure testing and calibration. It can be used in calibrating pressure gauges, transmitters, or other pressure measuring instruments.
Videos:
Setup Video Link
- Media: Oil
- Reservoir capacity: 420 ml
- Pressure Range: 85% vacuum to 15,000 psi (1,000 bar) positive.
- Material:
- Ram/adapters: Stainless Steel
- Body: Stainless Steel and aluminum
- Seals: Buna-N, PTFE, Copper Alloy, SS
- Connection: Hand-tight connectors for both test gauge and reference gauge(s). 1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female, or M20X1.5 female
- Dimensions:
- Height: 230 mm
- Base: 520 mm x 360 mm
- Weight: 16 kg
- Warranty: 1 year
- Piston volume:
- Low pressure piston: 30 ml
- High pressure piston: 2.5 ml
Accessories Included:
-
- Mineral Oil, 1 bottle (250 ml)
- O-Ring: 20 pcs
- Manual: 1 pc)
- Carrying Case (ADT936-X-Set models only)
| Optional Accessories: | |
|---|---|
| Model Number: | Description: |
| 9201 | Oil, Diethylhexyl Sebacate, 1 Ltr |
| ADT102 | Adapters and fittings, 1/4 NPT male to various male and female connection. (25 pcs) |
| ADT103 | Adapters and fittings, 1/4 NPT (1/2 NPT, 1/4BSP, 1/2BSP ,or M20x1.5) male to various female hand-tight quick connectors (10 pcs) |
| 9908 | Carry Case for ADT936, ADT937, ADT938, or ADT949 |
| ADT936-MK | Maintenance kit for Additel 936 pump |
